ML327_1SS
300mm Straight Grab Rail
Specification
| Material | #304 Stainless Steel – 32mmØ |
| Finish | Satin Stainless Steel |
| Mounting | Concealed Fix – 78mmØ Mount |
| Dimensions | 300mm C to C |

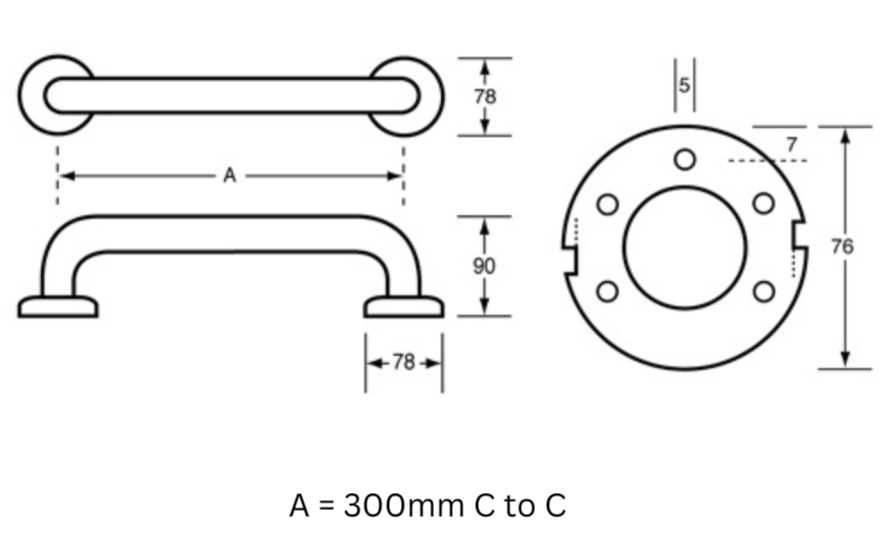

| Please note: A indicated on the line drawing refers to the length, please see below and specify accordingly | |
|
Also Available
|
ML327_DESIGNER: Designer Matte Black
ANMB_ML327_1SS: Antimicrobial
ML328 – 350mm C to C
ML329 – 400mm C to C
ML330 – 450mm C to C
ML331 – 600mm C to C
ML332 – 750mm C to C
ML338 – 800mm C to C
ML333 – 900mm C to C
ML334 – 1000mm C to C
ML335 – 1200mm C to C
ML336 – 1500mm C to C
|
| Note |
*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. *It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meet AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
