MLR121LH_SET

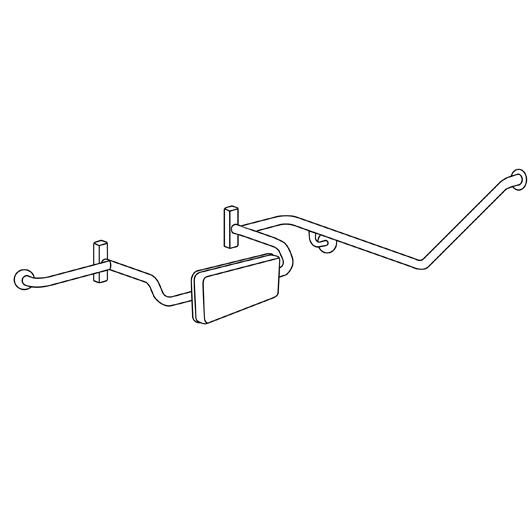

40° Grab Rail & Backrest Set LH

Specification

Material #304 Stainless Steel Frame & Mounts
Finish Satin Stainless Steel Left Hand Set with MLR 119 C
Mounting Concealed Fix
Backrest Standoff Adjustable depth to suit installation requirements
Note

Installation instructions provided

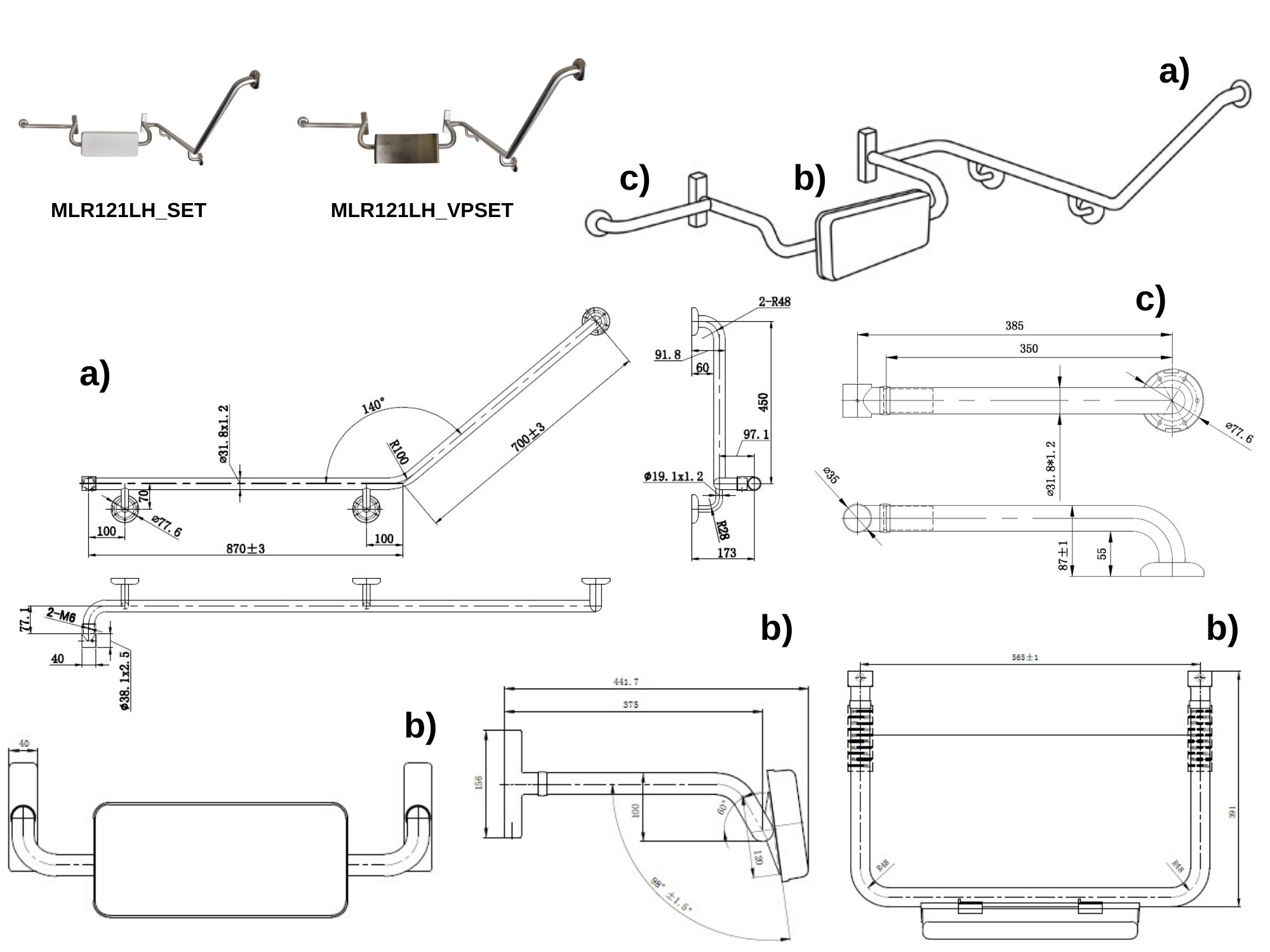

This set consists of:
• MLR121LH_X
• MLR119CMKII
• MLR_BR_350
*** Pieces can be sold separately if required ***



* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines and when installed with appropriate cistern.

*It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

*The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation.
