MLR104X_DESIGNER

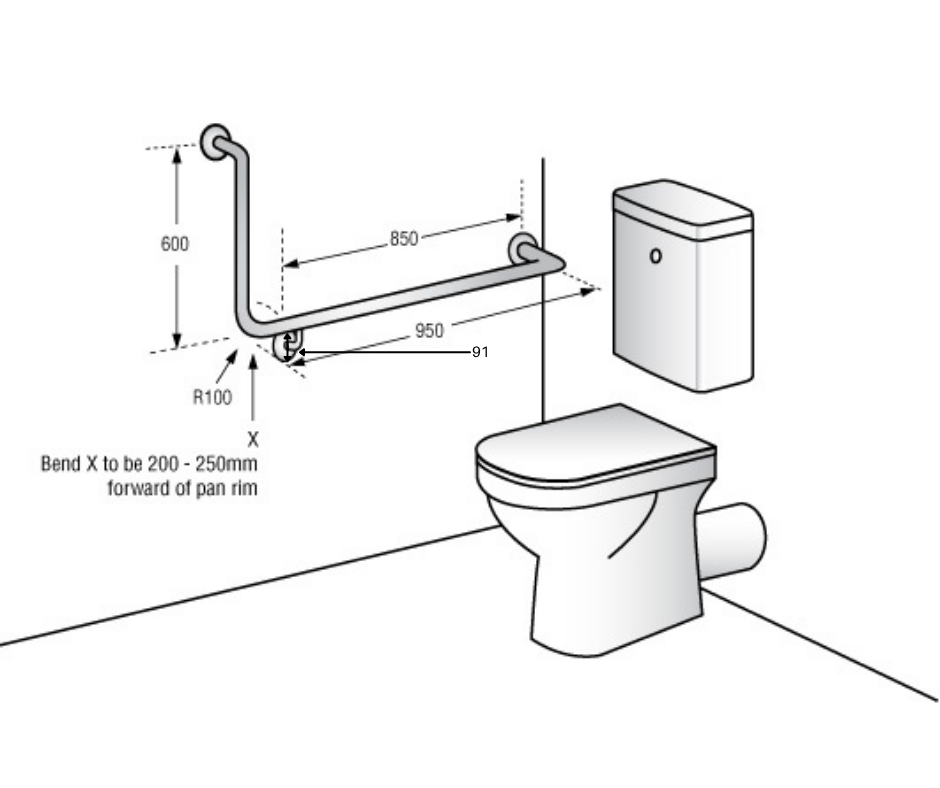

90° Flush Mount Side Wall 950x600mm RH in Designer Black

Specification

Material #304 Stainless Steel – 32mmØ
Finish  Designer Matte Black
Mounting Concealed Fix – 78mmØ Mount
  Stand off 55mm
Also Available
MLR104_X: Satin Stainless Steel
ANMB_MLR104_X: Antimicrobial
Note

* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.

* It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

* Compliant with the Force Requirements within AS1428.1:2021, Section 14.
